Our services
Diamond Core Drilling
Clean, accurate holes and openings through concrete, brick and block, for contractors, trades, homeowners and commercial buildings across Essex & London. Diamond core drilling is all we do.
What it is
What is diamond core drilling?
Diamond core drilling uses a hollow, diamond-tipped bit to cut a round hole through hard material. The bit grinds a thin ring through the wall or slab, and the solid cylinder inside it, called the core, comes out in one piece or a few pieces. You’re left with a clean hole with smooth sides, without hammering or the damage that comes with it.

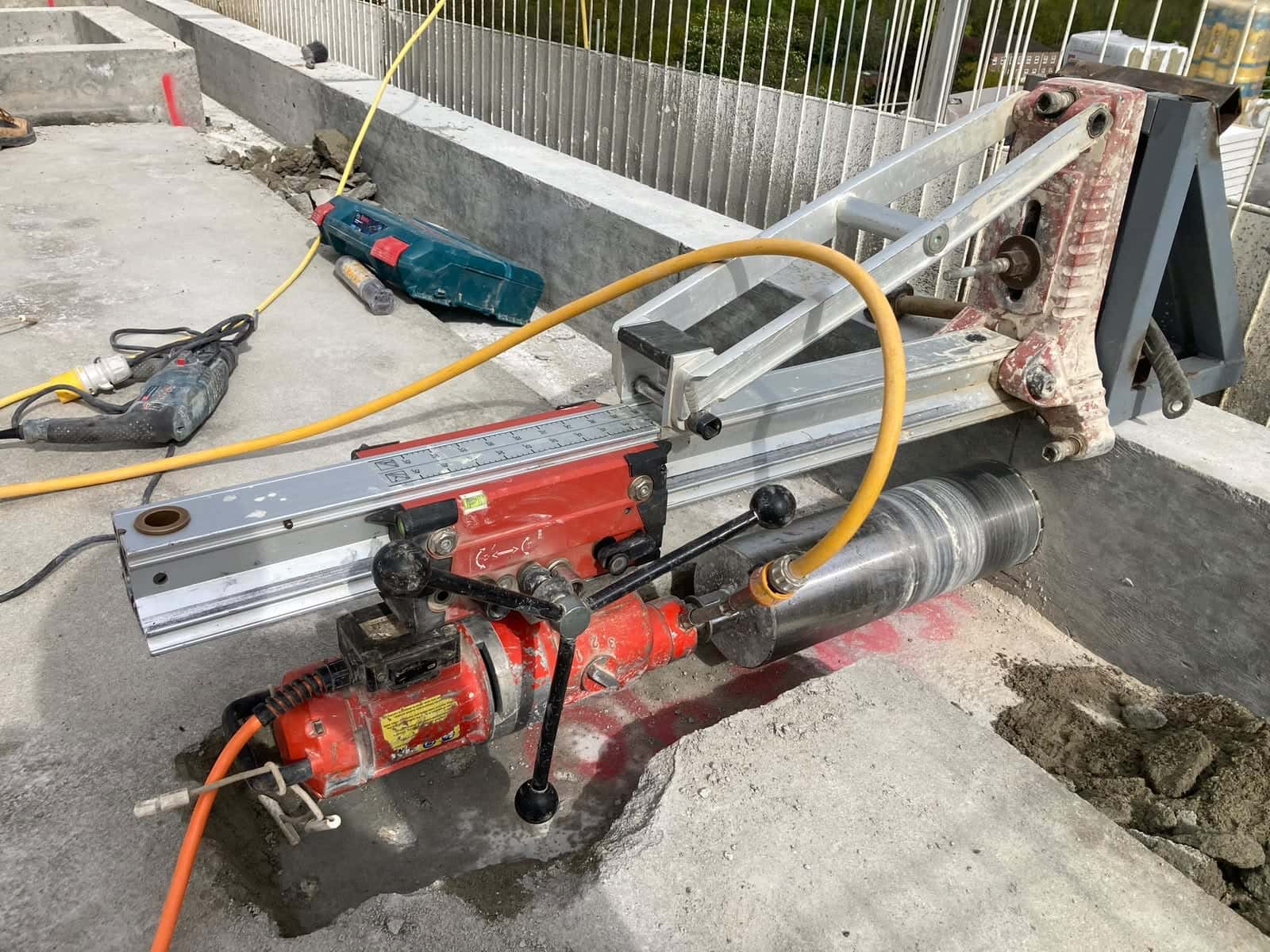

The drill motor is mounted on a rig: a stand held against the wall or floor that keeps the bit steady, straight and in the right place. Rigs can be set to drill vertically through floors, horizontally through walls, or at an angle where a pipe needs a fall.
The process is usually wet. Water cools the diamonds and carries the cut material away as slurry, which keeps dust down. That water has to be collected as the work goes, and in our photos you’ll see it handled with collectors and wet vacs.
Bigger than one core, or square? Openings are formed by stitch drilling: a line of overlapping cores around the outline, so the middle can be taken out.
What we drill
Core drilling services
Four ways we put holes and openings where you need them.
Wall core drilling
Holes through brick, block and concrete walls, including angled cores.
Floor & slab core drilling
Vertical cores through floors and slabs for pipes, risers and services.
Openings by stitch drilling
Square and rectangular openings formed from a line of overlapping cores.
Vacuum-base drilling
Rigs held down by suction, so there are no fixings into finished floors.
Typical applications
What the holes are for
- Ventilation & extractor fans
- Boiler flues
- Soil & waste pipes
- Drainage
- M&E service penetrations
- HVAC & condensate
- Sprinkler & fire services
- Cable routes
- Risers & hatches
Materials
What we drill through
- Concrete, including reinforced concrete slabs and walls
- Brick, including cavity walls
- Concrete block
Common jobs include core drilling for extractor fans, soil pipes and boiler flues, and drilling through concrete slabs for risers and drainage.
How a job runs
From photo to finished hole
Step 1: Send us the details
Use the quote form or call us. Photos of the wall or floor, rough sizes and the thickness if you know it.
Step 2: Get a price
We price the job from your photos and details.
Step 3: Booked in
We agree a date that works for you and your programme.
Step 4: Drilled
We set up, drill the holes, and collect the water and slurry as we go.
Who we work for
Contractors, trades and homeowners
Contractors & trades
Main contractors, builders and M&E trades who need holes in the right place, first time.
Homeowners
Extractor fans, boiler flues, soil pipes and extensions, explained in plain English.
Commercial & facilities
Live buildings, finished floors and minimal disruption for occupiers.
We work across Essex and London. See diamond drilling in Essex and core drilling in London.
Need a hole or an opening drilled?
Send us the details and a few photos. We'll come back to you with a price.
